風力計 & 風向[Pro-D]

Added 買い物かごに入れる

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

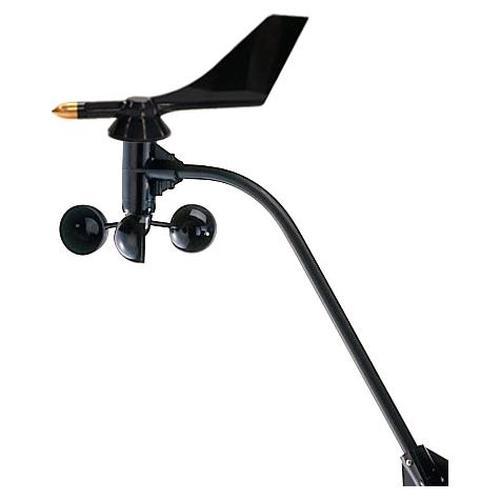

本Pro-D 風力計は、次のような当社新製品の風速データロガーを接続すると、風速と風向を測定します WindLogger, WindTracker または GSM システム

Pro-D 風力計 (Davis 6410)は、風速センサー、風向計&2"パイプ用固定器具(風マストのみ準備が必要)、取り付け用の13 メートルケーブルと付属品付き。

一般仕様:
センサータイプ: 風速 - ウィンドカップとマグネットスイッチ風向 - 風向計と電位差計
付属ケーブルの長さ: 12m (40フィート)
ケーブルタイプ: 4-導線、 26 AWG
材質: 風向計とコントロールヘッド:耐紫外線 ABS
ウインドカップ: ポリカーボネート
風力計アーム: ブラックアルマイト
寸法:長さ(L)381mm x幅 38mm x 高さ 457mm
風向出力:

Pro-D 風力計に関するさらなる情報は、こちらからpdfファイルをダウンロードしてください

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Simone Moras
Department of Ecology and Genetics/Simone Moras

In our project, we need to predict methane emission from lakes since it is a potent greenhouse gas. But to do that, we need to understand lake hydrodynamics first (e.g. water temperature, stratification patterns etc.). Wind has a strong effect on lake hydrodynamics and, therefore, it would be fundamental to get high frequency data on wind speed on the lake we study hence this type of kit is providing us with the valuable data. The lake I study is located in an agricultural area so no major obstacles (i.e. trees) will affect the wind speed.

M
Michael Huber
Ski resort AXAMER LIZUM

Windcrane Max system is working as we hoped. We got all the information including the wind direction we needed for our snowmaking system. We had a very cold condition with wind and snow, but it worked very well. Also, the PV panel works very well.

Customer Questions

Ask Question
0
Q: Dear,I have bought the kit Pro-D+Wind Logger.I want to use our own DAQ system for live reading, for that I would need more information regarding the output signal of both sensors (vane anda anemometer). For example, output range V, sensitivity, calibration values.Thank you in advance.João OliveiraBosch Car Multimedia Portugal SA

A: You can find details of the anemometer here: https://www.windlogger.co.uk/collections/sensors/products/pro-d-anemometer and also you can connect to the WINDLogger via serial port, which will provide the data ready for consumption in ASCII format
