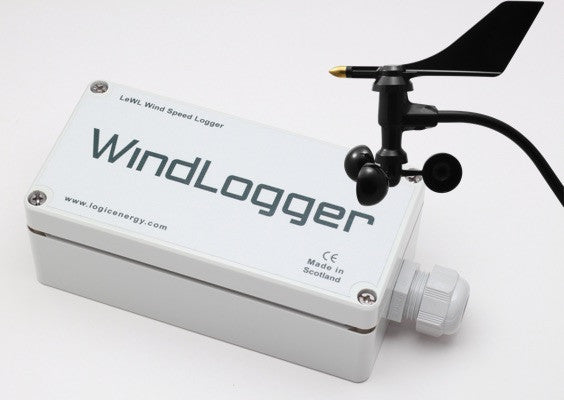

新しい LeWL WindLogger

Added 買い物かごに入れる

Please check the lead times below at overview information

This product will be despatched within 5-10 working days
---- QUESTIONS AND ANSWERS ----

新しいLeWL WindLogger は、2008年より製造されています。当社は世界中でこの小さなウインドデータロガーを何千台も販売し、安定性、精度、耐久性で素晴らしい評判を得ています。

この 新しいWindLogger は、風に熱心な小さなコミュニティのお蔭で大きく性能を向上させて再設計されています。当社はお客様の評価を聞いて改善しています:

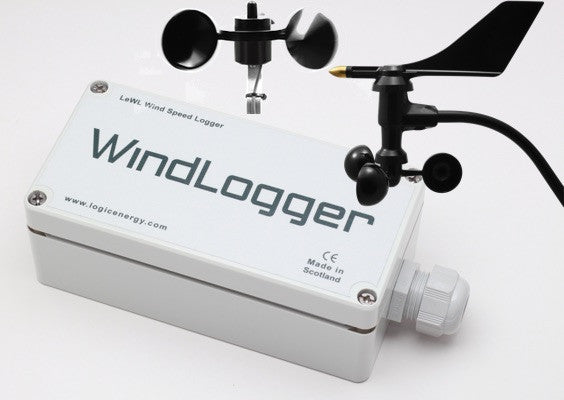

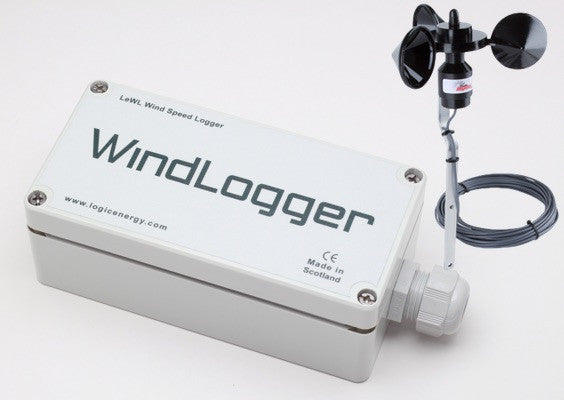

  • 以前の取り付けよりもシンプル。 Davis 風力計を内部6P4C コネクターに差し込むだけ。 他のタイプの風力計を使用していても、OK。内部センサー接続ブロックに直接接続できます。
  • 自動風力計検出システム。新しいWindLoggerは、場所を離れる前に接続されて作動する風力計があるかどうかを知らせます。
  • 外部温度プローブオプション

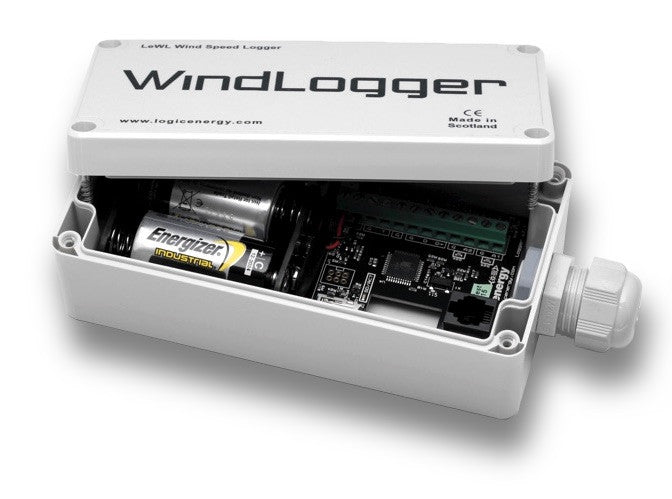

  • ビルトイン・バッテリーモニター
  • 1分間のログ間隔で1年までの優れたバッテリー寿命
仕様
- 同時に2台まで風速計から風速を記録 - 平均風速、突風の風速、標準偏差( 乱流)風向
- 外部温度プローブ用入力
- 1分間データを記録する1年までのバッテリー寿命または10分間隔で記録する3年までのバッテリー寿命(テスト目的に10秒間が入手可能)
- エクセルか分析ソフトウェアへのインポート用の標準CSVフォーマットのマイクロSDカードに記録された時刻表示されるデータ。すべてのセンサー値とバッテリー状態を含む

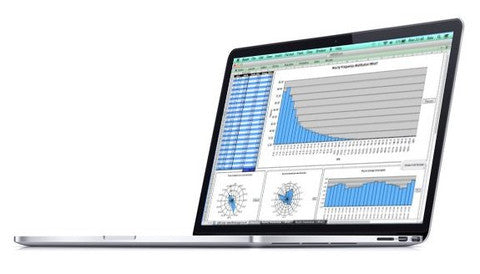

- シンプルな分析ツール付き。 (加工やJavaアプリ用エクセルテンプレート)
- 査定された完全に耐候性IP65 カバー
SDカードメモリー保存
- 標準CSV ASCIIフォーマットにファイル、月ごとのファイルにアーカイブ
-平均、標準偏差、最大値を記録
- 日付と時刻表示入りで記録されるデータ
- マイクロSD フラッシュカード FAT32
4つのセンサー入力
- 一度に2台の風力計にログ(2つのデジタル入力)
- 乾燥接触(無電圧)スイッチ、ホール効果スイッチ、 オープンコレクターまたは3V 論理レベルシグナル風速入力をサポート
- 電位差計タイプ風向センサー、1k - 20k ohms。
- 外部温度センサーをサポート
PCでインターフェースへのシリアルポート
- データにログ中に値を読むのに互換性があるRS232
- シリアルポートかSDカード経由のセットアップメニュー
- 4800bps
- RS232経由のカスタムセンサーファクター・セットアップ

機械情報

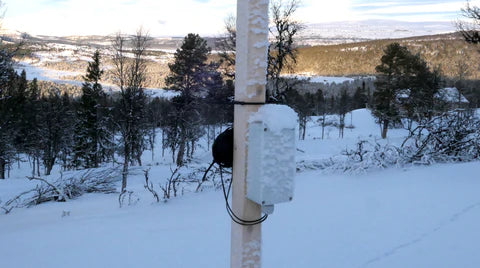

- 操作温度 -40*C から + 70*C (極端な気象アプリケーションのために私達に最初に確認してください)
- センサーワイヤにグランド付き密封IP65カバー
- 寸法: 160x80x55mm
- 重量: バッテリー込みで450gm

マニュアルをダウンロードしてクイックガイドはこちらから、あるいはWindLoggerのよくある質問とビデオをご覧ください

Customer Reviews

Based on 8 reviews Write a review

Customer Questions

Ask Question
0
Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

1
Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

2
Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

3
Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

4
Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

5
Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

6
Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
